Cell safety, electrical safety, structural safety, fire protection systemLong cycle life, cell lifespan over 12000 cycles @70% SOHHigh system consistency, cell temperature difference ≤ 3℃High energy density cells, highly integrated systemStandard 20 ft container, time/cost saving for transportation and installation
Configuration: 9P396S (9 racks)Nominal Voltage: 1267.2VOperating Voltage Range: 990-1445.4VCharge/Discharge Rate: 0.5C at 25℃ Operating Temperature Range: -30~50℃Ingress Protection: IP54Communication Interface: CAN/RS485/EthernetAltitude:＜3000mDimension: (W*D*H)6058*2438*2896mm (20 ft container)Weight: ≈37t
Configuration: 12P416S (12 racks)Nominal Voltage: 1331VOperating Voltage Range: 1040-1497.6VCharge/Discharge Rate: 0.5C at 25℃ Operating Temperature Range: -30~45℃ (>45℃ derating)Ingress Protection: IP55Communication Interface: CAN/RS485/EthernetAltitude:＜3000m (≥3000m derating)Dimension: (W*D*H)6058*2438*2896mm (20 ft container)Weight: ≈43tLand saving by back-to-back, side-to-side installation

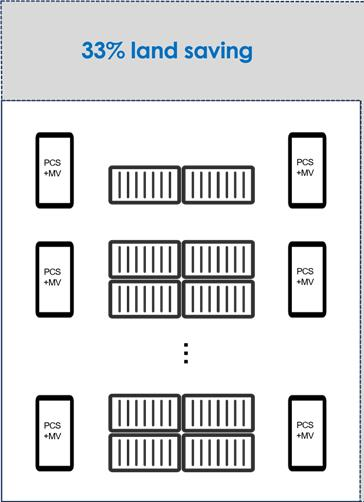

Unique design of the energy storage container allows nested configuration of up to 4 containers
BESSMONT solution

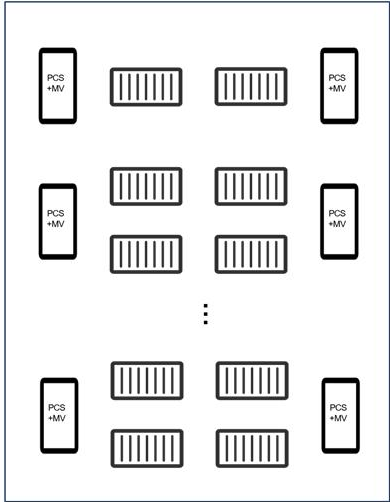

Standard market solution
Rated Power: 2.5 MW continuous outputEnergy Capacity: 5 MWhResponse Time: < 1 second for grid support and backup operationsRound-Trip Efficiency: up to 93% at DC blockOperating Temperature Range: -20 °C to +50 °C (with thermal management)Cycle Life: 12000 cycles @70% SOHAvailability: 24/7 high-reliability operationContainerized MV skid Design: ISO 20ft container
Rated Power: 5 MW continuous outputEnergy Capacity: Typically 5–20 MWh per installation (depending on project design)Response Time: < 1 second for grid support, frequency regulation, and backup operationsRound-Trip Efficiency: up to 93% at DC blockOperating Temperature Range: -20 °C to +50 °C (with thermal management)Cycle Life: 12000 cycles @70% SOHAvailability: Designed for 24/7 operation with high reliability Containerized MV skid Design: ISO 40ft container
Rated Power: 7.5 MW continuous outputEnergy Capacity: Typically 7.5–30 MWh per installation (depending on project design)Response Time: < 1 second for grid support, frequency regulation, and backup operationsRound-Trip Efficiency: up to 93% at DC blockOperating Temperature Range: -20 °C to +50 °C (with thermal management)Cycle Life: 12000 cycles @70% SOHAvailability: Designed for 24/7 high-reliability operation Containerized MV skid Design: ISO 40ft container
Rated Power: 10 MW continuous outputEnergy Capacity: Typically 7.5–30 MWh per installation (depending on project design)Response Time: < 1 second for grid support, frequency regulation, and backup operationsRound-Trip Efficiency: up to 93% at DC blockOperating Temperature Range: -20 °C to +50 °C (with thermal management)Cycle Life: 12000 cycles @70% SOHAvailability: Designed for 24/7 high-reliability operation Containerized MV skid Design: ISO 40ft container
Commercial and industrial (C&I) battery storage systems are designed specifically for industrial and commercial applications. Featuring a modular design, they offer flexible voltage and capacity configurations to meet diverse energy demands. These systems help reduce electricity costs by managing peak and off-peak usage, while also serving as backup power during outages. Additionally, C&I renewable energy storage supports grid stability, enables participation in electricity spot markets, and provides ancillary services.
C&I energy storage system integrate core components such as battery packs, Energy Management System (EMS), Battery Management System (BMS), Power Conversion System (PCS), thermal management and fire protection into a standard container. Its modular design allows easy transport, installation and maintenance, making it ideal for applications like peak shaving, emergency backup power and renewable energy integration.
Cell Capacity: 704VRecommended Voltage: 600-803VMaximum Charge/Discharge Rate: 0.5C@25°C Rated Power: 100kW AC-Side Voltage: 400V (-15%~15%)Rated Grid Frequency: 50Hz/60HzMaximum PCS Efficiency: 98%Storage Temperature: -30°C ~ 60°COperating Temperature Range: -25°C ~ 50°C (>45°C derating)Operating Humidity Range: 5%–95% RH (non-condensing)Altitude Rating: ≤3000m (>2000m derating)Ingress Protection Rating:L IP55Cooling Method: PCS air cooling + battery pack liquid coolingCommunication Method:L RS-485, Ethernet (reserved)Fire Suppression System: + Temperature/Smoke Detection + Gas Concentration Detection + Explosion Relief Panel + FK-5-1-12/Aerosol Fire Suppression(Pack level and system level)Dimensions (W*D*H): 1340*1300*2300mmWeight: ≈2.6t
Cell Capacity: 832VRecommended Voltage: 728-936VMaximum Charge/Discharge Rate: 0.5C@25°C Rated Power: 125kW AC-Side Voltage: 400v (-15%~15%)Rated Grid Frequency: 50Hz/60HzMaximum PCS Efficiency: 99%Storage Temperature: -30°C ~ 60°COperating Temperature Range: -25°C ~ 50°C (>45°C derating)Operating Humidity Range: 5%–95% RH (non-condensing)Altitude Rating: ≤3000m (>2000m derating)Ingress Protection Rating:L IP55Cooling Method: PCS air cooling + battery pack liquid coolingCommunication Method:L RS-485, Ethernet (reserved)Fire Suppression System: + Temperature/Smoke Detection + Gas Concentration Detection + Explosion Relief Panel + FK-5-1-12/Aerosol Fire Suppression(Pack level and system level)Dimensions (W*D*H): 1120*1350*2420mmWeight: ≈2.6t
DC block with robust capacity of 760 kWh. Scalability and flexibility of up to 5 parallel connections, total of 3.8 MWh.Compatible with centralized and string PCS, grid and off-grid modes Real-time monitoring with intelligent fault diagnostics and early alertsIntegrated liquid cooled C&I solution for urban buildings, peak shaving, trading and other scenarios.
Nominal Voltage: 1267.2VRecommended Voltage Range: 1108.8-1425.6VMaximum Charge/Discharge Rate: 0.5C at 25°C Storage Temperature: -30°C ~ 60°COperating Temperature Range: -20°C ~ 45°C (>45°C derating)Operating Humidity Range: 0%–95% RH (non-condensing)Altitude Rating: ≤2000m (>2000m derating)Ingress Protection Rating: IP55Communication Method: CAN, RS485, EthernetFire Suppression System Temperature/Smoke Detection: + Explosion Relief Panel + PACK-level Submerged Fire Extinguishing System + Aerosol Fire Extinguishing System + Prefabricated Water Sprinkler System (optional)Dimensions: (W*D*H)1400*2400*2500mmWeight: ≈8t

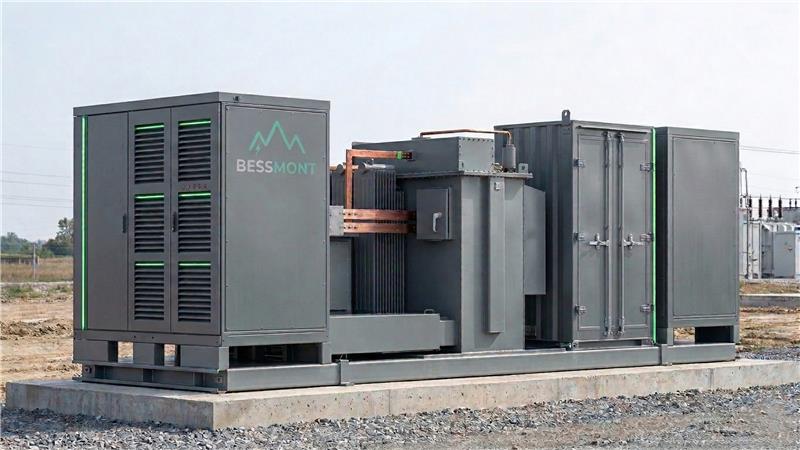

Features: - Use alone or in combination with MV station and RMU - Modular design with modules from 215kW to 1250kW power allowing running ESS at various power or C-rates per customer preference, up to 0.5C. Total output power up to or even exceeding 10MW - 4-quadrant active and reactive power control - Maximum efficiency up to 99% - Millisecond-level power response to EMS/SCADA - MV station transformer up to 35kV (for other voltage levels reach out to us) - SF6-free RMU option available - Typically delivered in standard 20ft or 40ft container
Integrated power electronics and medium-voltage equipment converting DC to AC power, enabling seamless grid interconnection and bi-directional energy flow. A wide range of fully integrated PCS options can be supplied and installed by InoBat, based on project requirements and customer preferences. The PCS units are sourced from various well established european and asian suppliers depending on the proposed system requirements and customer preference.
